Description

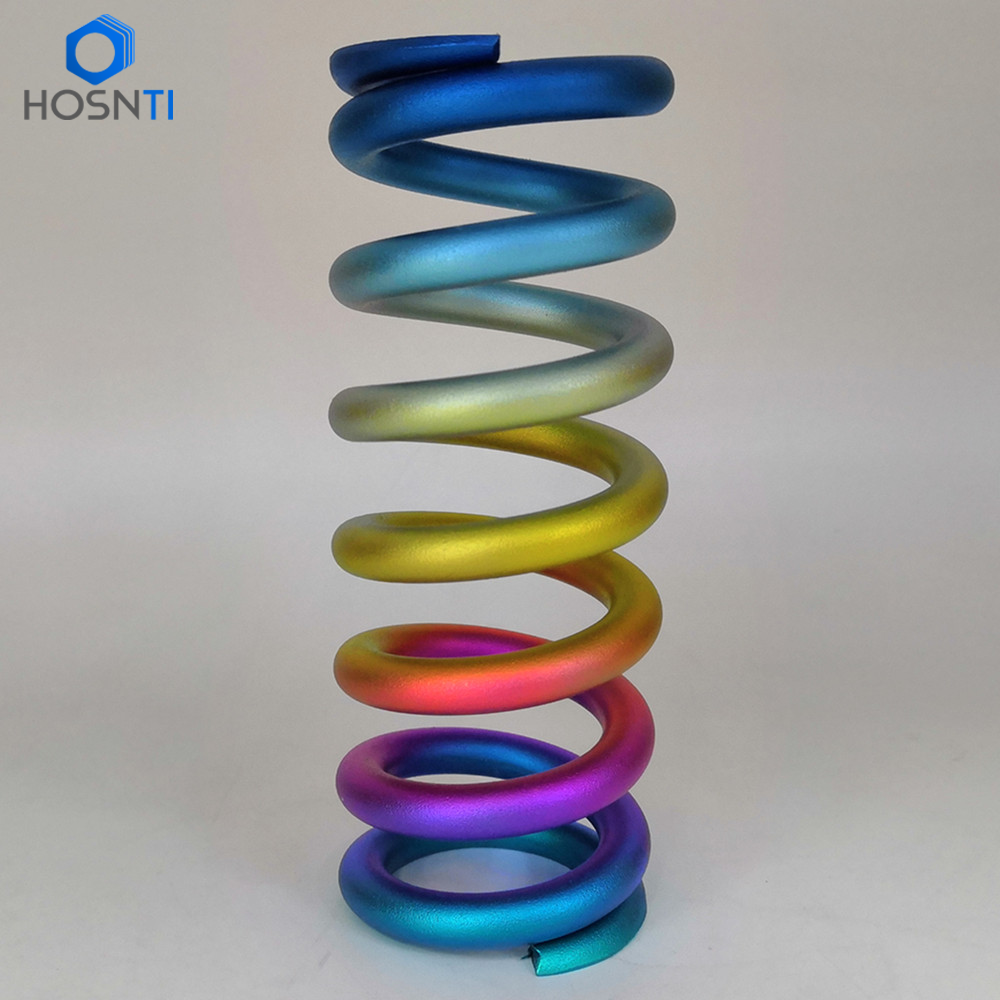

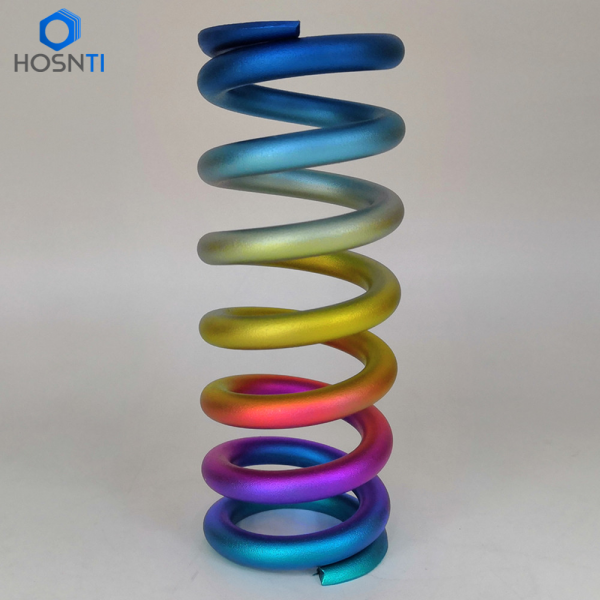

Rainbow Titanium Shock Springs Descriptions

Material: Titanium Alloy Grade 5 (Ti-6Al-4V) Colors: Anodized Rainbow and other colors can be available(Red,Oilslick,Gold,Blue,Black,Purple,Green and Shotblast finish) Applications: The Rainbow Ti Spring is used for bicycle rear shocks

Specifications of Titanium Shock Springs

Ti Spring Rates: 200lbs/incn to 800lbs/inch

Ti Spring Stroke:2.0″,2.25″,2.5″,2.75″,3”，3.25“，3.5” or customized stroke (For example 2.85″)

Ti Spring Inner Diameter: 35mm,36mm and 38mm

Ti Spring Excellent Features: Low weight;Small volume;Corrosion Resistance;Rustless;Long Lifetime

Notes:Just offer me Spring Rates,Stroke and Inner Diameter of the spring which you want to order. For example 450lbs x 3” with 36.5mm inner diameter

Why we choose Titanium Shock Springs

Titanium has low density(4.51g/cm³),high strength,excellent corrosion resistance features,Anti-fatigue and low shear modulus features,so titanium springs can be designed smaller volume,much lower weight than steel springs(around 55% weight of steel spring) and much longer lifetime.So now it widely used in racing field (bike rear shocks springs and car valve springs),Chemical field,Marine field,Electronic field,and any fields which using springs.
