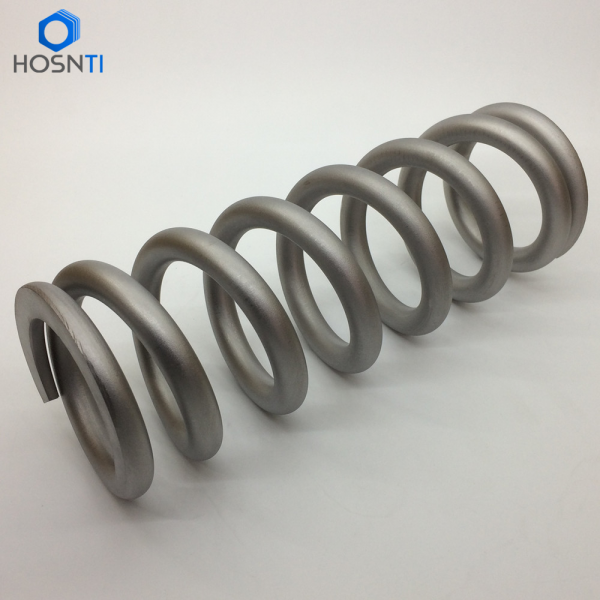

Titaniu Coil Springs for Mountain Bikes Descriptions

The Titanium Coil Springs is made from high quality aerospace titanium alloy Grade 5 materials and widely used for mountain bikes.It is designed with much lower weight for the titanium springs vs steel springs.

Specifications of Titanium Coil Springs

Titanium Spring Rates: 200lbs/inch to 800lbs/inch

Titanium Spring Stroke:2.0″,2.25″,2.5″,2.75″,3”，3.25“，3.5” or customized stroke (For example 2.85″)

Titanium Spring Inner Diameter: 35mm,36mm and 38mm

Finish Treatment of Ti Springs:Red,Oilslick,Rainbow,Gold,Blue,Black,Purple,Green and Shotblast finish.

Ti Spring Excellent Features: Low weight;Small volume;Corrosion Resistance;Rustless;Long Lifetime

Notes:Just offer me Spring Rates,Stroke and Inner Diameter of the spring which you want to order. For example 450lbs x 3” with 36.5mm inner diameter

Why we choose Titanium Coil Springs

Titanium has low density(4.51g/cm³),high strength,excellent corrosion resistance features,Anti-fatigue and low shear modulus features,so titanium springs can be designed smaller volume,much lower weight than steel springs(around 55% weight of steel spring) and much longer lifetime.So now it widely used in racing field (bike rear shocks springs and car valve springs),Chemical field,Marine field,Electronic field,and any fields which using springs.
