High Strength Ti Springs for Rear Shocks

Compared with steel springs,titanium spring has much higher strength and at the same time,can save much weight.

Description

High Strength Ti Springs for Rear Shocks descriptions

Product Name: High Strength Ti Springs for Rear Shocks

Material: Titanium Alloy Grade 5 Ti6Al4V

Spring Rates: 200lbs/inch to 800lbs/inch (can be customized rates,for example 444lbs/inch)

Stroke: 2.0″,2.25″,2.5″,2.75″,3”,3.25“,3.5” or customized stroke

Inner Diameter: 35mm,36mm and 38mm

Finish: Rainbow,Gold,Blue,Black,Purple,Green and Shotblast finish.

Features: Low weight;Small volume;Corrosion Resistance;Rustless;Long Lifetime

Notes:Just offer me Spring Rates,Stroke and Inner Diameter of the spring which you want to order. For example 450lbs x 3” with 36.5mm inner diameter

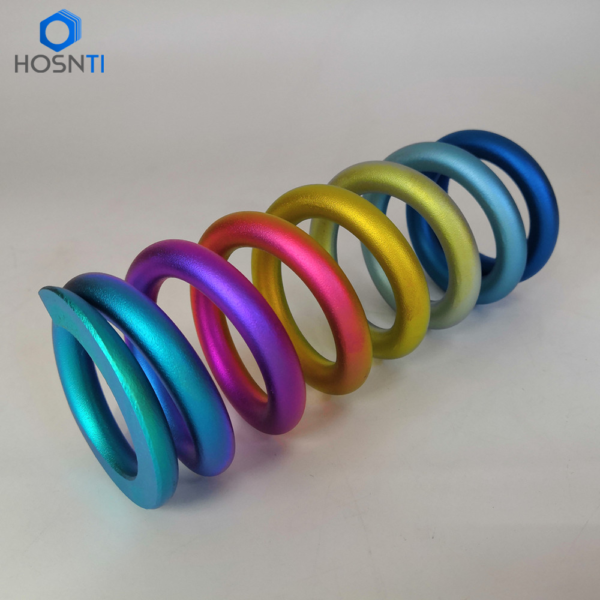

High Strength Ti Springs for Rear Shocks photos

Why Choose Ti Springs

Titanium has low density(4.51g/cm³),high strength,excellent corrosion resistance features,Anti-fatigue and low shear modulus features,so titanium springs can be designed smaller volume,much lower weight than steel springs(around 55% weight of steel spring) and much longer lifetime.So now it widely used in racing field (bike rear shocks springs and car valve springs),Chemical field,Marine field,Electronic field,and any fields which using springs.
